FA1211/FA1213 Cotton Carding Machine

FA1211/ FA1213 high production cotton carding machine is by Lebon based on many years of experience in carding development and production, drawing on the current advanced technology of high production carding machines in domestic and oversea market. This type of carding machine maintains the process and technical performance of the original multiple mature models, uses functional module design ideas for structural optimization and integration, and integrates product use functions and aesthetic functions.

Inquiry Now

Technical Data

Specifications:

Type		FA1211	FA1213
Application		Application applicable to chemical fiber,pure cotton in length from 22~76mm and other blended material
Max.Actual output(kg/h)		100		160
Max.Sliver delivery speed(meter/min)		300		320
Sliver count(g/m)		3～7		3.5～10
Feed weight(gram/meter)		400～1000		400～1300
Working width(mm)		1000		1280
Total draft folds		60～300		38～370
Licker-in working diameter(mm)		Φ250
Doffer working diameter(mm)		φ706
Doffer working speed(rpm)		4.3～84
Cylinder working diameter(mm)		Φ1288
Cylinder working speed(rpm)		347～477
Pieces of rotary (working flat/total flats)		30/84
Flat speed(mm/min)		70～408
Attached carding segments	Licker-in carding segment	2 (Pieces)
	Front stationery flats	8 (Pieces)
	Back stationery flats	10 (Pieces)
Web cleaner-	Front 3,Back 3	Cotton
	Front 2,Back 2	Chemical fiber
Continuous air suction volume(m³hour)		4000		4500
Statistic pressure at exit(pa)		-800
Compressed air pressure(kg/cm²)		6~7
Compressed air consumption(m³/h)		0.5
Total power installation(KW)		9.24		13.99
Safety cover type		Totally enclosed
Land occupation (LxWxH)(mm)		5825X2480x3705(Φ1000)		5825X2480x3705(Φ1000）
Machine net weight(kg)		7200KG		8000KG

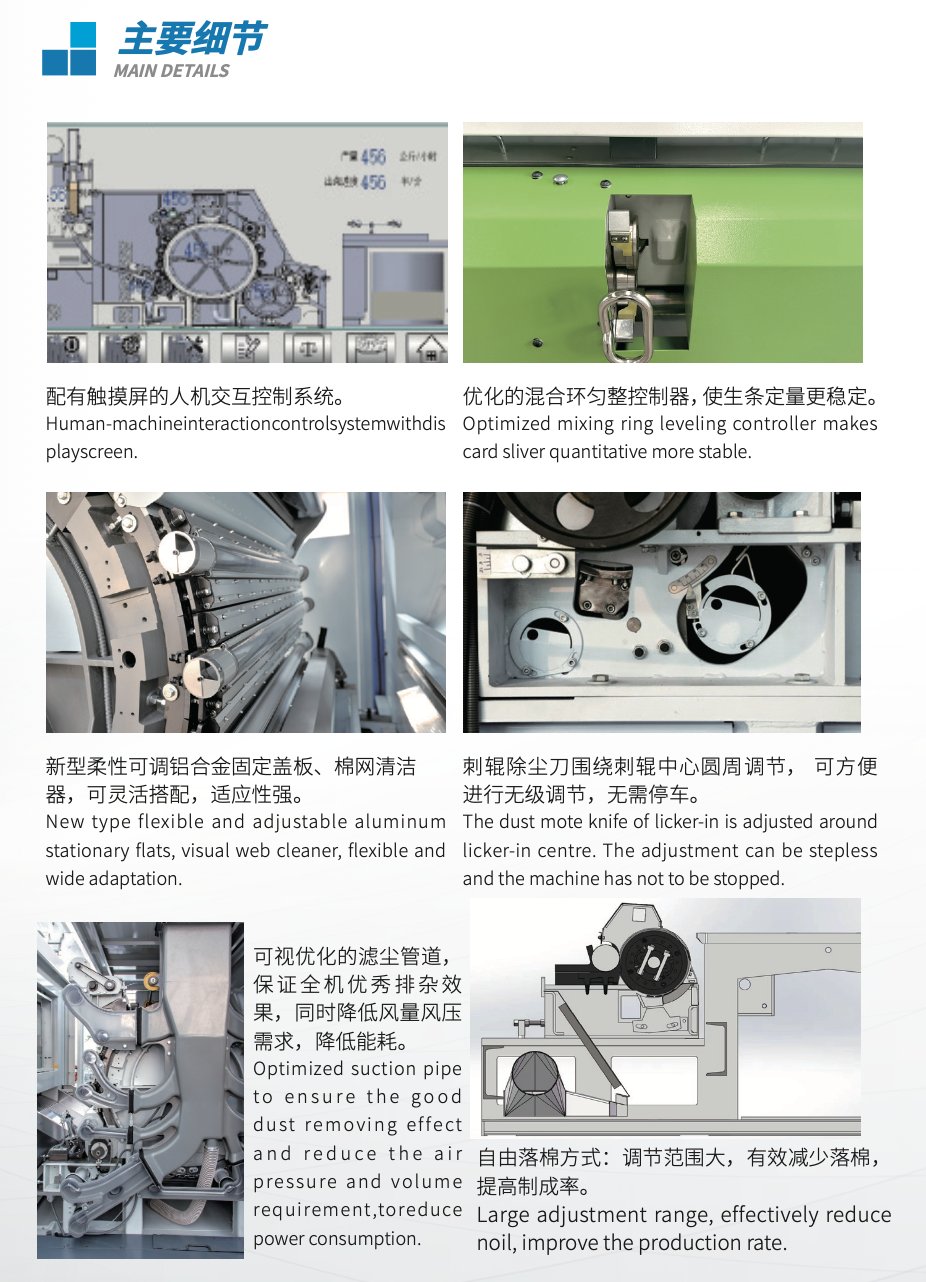

Details:

Feature:

1. Human-machine interaction control system with display screen.

2. New type flexible and adjustable aluminum stationary flats, visual web cleaner, flexible and wide adaptation.

3. Optimized mixing ring leveling controller makes card sliver quantitative more stable.

4. The dust mote knife of licker-in is adjusted around licker-in center. The adjustment can be stepless and the machine has not to be stopped.

5. Optimized suction pipe to ensure the good dust removing effect and reduce the air pressure and volume requirement, to reduce power consumption.

6. Large adjustment range, effectively reduce impurity improve the production rate.
