Introduction: The Heart of Your Thermal Bonding Line

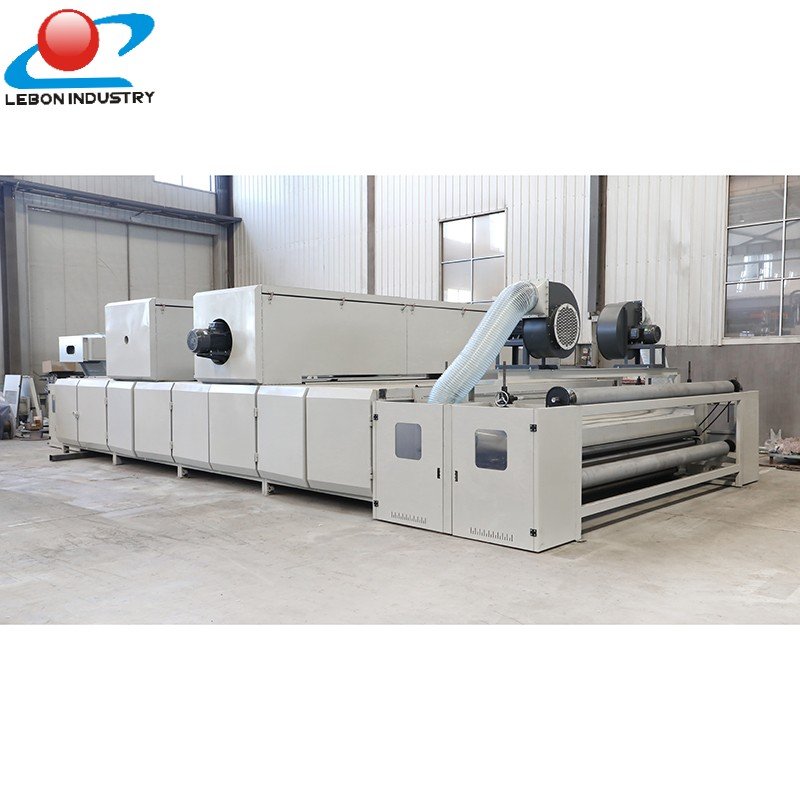

The thermal bonding oven is the critical component of any thermal bonding line. It transforms a loose fiber web into a strong, cohesive nonwoven fabric by melting and fusing thermoplastic fibers-. However, achieving consistent bonding depends on three interdependent parameters: temperature, line speed, and air pressure. When these parameters fall out of balance, product quality suffers. Consequently, understanding how to troubleshoot thermal bonding oven problems is essential for maintaining production efficiency. This article identifies common issues related to each parameter and provides practical solutions.
Temperature Problems: Too Hot, Too Cold, or Uneven
Temperature is the most critical parameter in thermal bonding. The oven must reach the melting point of the low-melt or bicomponent fibers—typically between 140°C and 220°C-. For bicomponent fibers with a 130°C sheath melt, the oven temperature should be 15-20°C above the sheath melt point, typically 145-185°C-. However, it must stay well below the core melt point to preserve fiber structure-. Any deviation creates defects.
Problem A: Insufficient Bonding (Fabric Lacks Strength)
l Symptoms: The fabric pulls apart easily, has low tensile strength, or feels fluffy and unbonded.
l Possible Causes:
n Oven temperature is set too low.
n Temperature sensors (thermocouples) are miscalibrated, displaying incorrect readings.
n Heating elements are worn or faulty, failing to reach the setpoint.
n The web passes through the oven too quickly, reducing dwell time.
l Solutions:
n Verify thermocouple calibration periodically using a certified reference thermometer.
n Check heater zone resistances and replace faulty heating elements.
n Increase oven temperature in 5°C increments until adequate bonding is achieved.
n If temperature is already at the upper limit, reduce line speed to allow more heating time.
Problem B: Over-Bonding (Fabric Stiff, Harsh, or Discolored)
l Symptoms: The fabric feels stiff and board-like, has a yellow or brown discoloration, or shows melted spots.
l Possible Causes:
n Oven temperature is too high.
n The web dwells in the oven too long.
n Temperature control system is malfunctioning, causing overheating.
l Solutions:
n Reduce oven temperature in 5°C decrements.
n Check the temperature controller for proper function.
n Test the temperature limiter or over-temperature safety device.
n Increase line speed to reduce dwell time if speed adjustment is available.
Problem C: Uneven Bonding Across the Fabric Width
l Symptoms: The fabric shows strong bonding in the center but weak edges, or vice versa. Quality varies across the roll.
l Possible Causes:
n Airflow is uneven across the oven width.
n Air filters are partially clogged, creating pressure differences.
n The web itself has uneven thickness entering the oven.
l Solutions:
n Clean or replace clogged air filters.
n Balance airflow ducts to prevent hot spots and cold zones.
n For through-air bonding systems, aim for temperature variation of less than ±1°C across the fabric width.
n Check that the web entering the oven has consistent thickness. Uneven web uniformity will magnify any oven inconsistencies.
Pro Tip: For optimal results, set the oven inlet temperature to around 165°C for standard bicomponent fibers. Use this as a baseline and adjust based on your specific fiber and fabric weight.
Speed Problems: The Dwell Time Challenge
Line speed determines how long the web remains in the oven—known as dwell time or heating time-. As speed increases, dwell time decreases. Therefore, speed and temperature have an inverse relationship. For a given fabric, a higher speed requires higher temperature to achieve the same bonding level.
Problem A: Speed Too High for the Temperature Setting
l Symptoms: The fabric exits the oven under-bonded, even though the temperature setting appears correct.
l Possible Causes:
n The line speed was increased without a corresponding temperature adjustment.
n The operator changed the speed setting accidentally.
l Solutions:
n When increasing line speed, raise the oven temperature accordingly.
n When reducing line speed, lower the temperature to avoid over-bonding.
n Use a speed-temperature lookup table for each product to guide adjustments.
Problem B: Inconsistent Speed Causing Quality Variation
l Symptoms: The fabric quality varies from the start to the end of a roll, or between different production runs.
l Possible Causes:
n The drive system is unstable, causing speed fluctuations.
n The thermal bonding oven is not synchronized with upstream machines like the carding machine or cross lapper.
l Solutions:
n Check the drive belts and motors for wear or slippage.
n Ensure the oven speed matches the speed of the cross lapper output.
n Install a speed feedback system that automatically adjusts temperature when speed changes.
Key Principle: The product of line speed and heating time determines the total heat energy delivered to the web. Any change in one parameter requires a compensatory change in the other.
Pressure Problems: Too Much or Too Little Airflow
In through-air bonding (also called hot air bonding), hot air penetrates the web to deliver heat. The air pressure (or airflow velocity) must be sufficient to push hot air through the entire thickness of the web. However, excessive pressure before bonding occurs can disrupt the web structure.
Problem A: Insufficient Airflow (Poor Heat Penetration)
l Symptoms: The inner layers of thick fabrics remain unbonded while the surface layers bond properly. The fabric has a "skin" effect.
l Possible Causes:
n Air pressure is too low for the fabric weight and thickness.
n Air filters are clogged, restricting flow.
n The blower or fan is underperforming.
l Solutions:
n Increase air pressure gradually until heat penetrates the full web thickness.
n Clean or replace air filters.
n Audit blowers for vibration and speed inconsistencies.
Problem B: Excessive Airflow (Web Disruption)
l Symptoms: The web shows signs of fiber disturbance, such as holes, thin spots, or uneven thickness after bonding.
l Possible Causes:
n Air pressure is too high for the web weight, especially for lightweight fabrics.
n The web is still fragile before bonding begins.
l Solutions:
n Reduce air pressure until the web structure remains intact.
n For lightweight fabrics (e.g., below 30 gsm), use lower pressure settings.
n Ensure the web has adequate integrity entering the oven by checking upstream processes.
Problem C: Uneven Airflow Across the Width
l Symptoms: The fabric shows localized bonding or weak spots across the width. One edge may be over-bonded while the other is under-bonded.
l Possible Causes:
n Air ducts are partially blocked on one side.
n The web thickness varies across the width, creating different airflow resistance.
l Solutions:
n Inspect and clean air ducts and nozzles for blockages.
n Balance airflow across the width by adjusting dampers or baffles.
n Ensure the cross lapper produces a web with uniform thickness.
The Interconnected Nature of the Three Parameters
Temperature, speed, and pressure do not operate in isolation. Changes to one parameter affect the others. For example:
l Increasing line speed requires increasing temperature or pressure to maintain bonding quality.
l Reducing temperature requires reducing speed (increasing dwell time) or increasing pressure to compensate.
l Changing fabric weight requires adjusting all three parameters: heavier fabrics need higher temperature, lower speed, and higher pressure.
Therefore, create a settings table for each product you run. Record the temperature, speed, and pressure that produce optimal quality. When you change products, recall the saved settings instead of guessing.
Preventive Maintenance Checklist for Thermal Bonding Ovens
Regular maintenance prevents many of the problems described above. Follow this checklist:
Daily Tasks:
l Check heating circuit status on the control panel.
l Inspect filters and clean if necessary.
l Listen for unusual noises from fans and blowers.
l Verify that the temperature display matches the actual oven temperature.
Weekly Tasks:
l Clean rollers and conveyor belts to remove dust and debris.
l Lubricate moving parts according to the manufacturer's schedule.
l Inspect heating elements for visible damage.
Monthly Tasks:
l Calibrate thermocouples and temperature sensors.
l Check and tighten electrical connections.
l Inspect insulation for damage or gaps.
l Audit airflow distribution across the oven width.
Quarterly Tasks:
l Replace worn heating elements.
l Perform a complete thermal profile test across the oven.
l Inspect and service blowers and fans.
l Review and update product settings tables.
Conclusion: Master the Three Parameters for Consistent Quality
The thermal bonding oven is the heart of your thermal bonding line. Its performance depends on the careful balance of temperature, line speed, and air pressure-. Temperature must be high enough to melt the binder fibers but not so high as to degrade them. Speed must allow sufficient dwell time for heat penetration. Pressure must push air through the web without disrupting its structure. When these three parameters work in harmony, your nonwoven fabric emerges with consistent strength, softness, and appearance.
